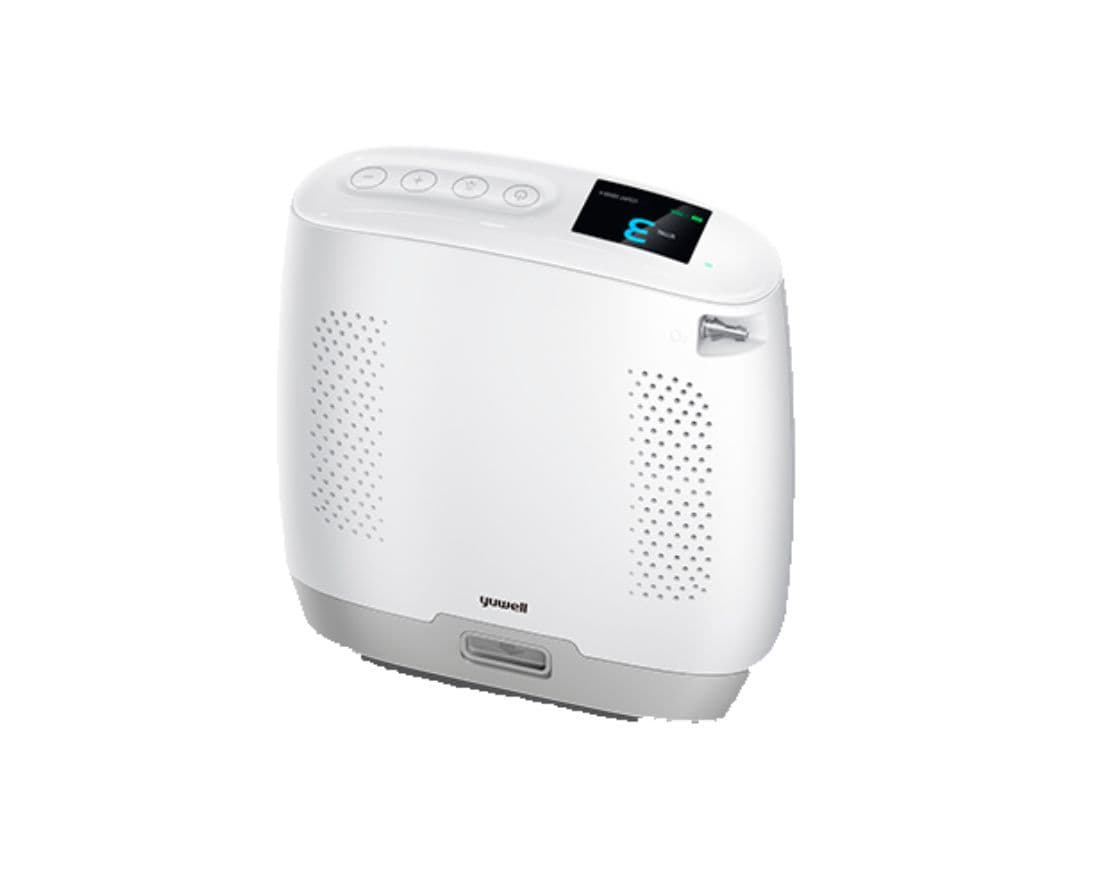

Spirit-3 Portable Oxygen Concentrator (Yuwell)

1.749,00 € VAT not included

Highly compact device to provide additional oxygen. Its rechargeable battery allows it to be used away from home. It can be worn on a shoulder strap.

REF: 1020605 Category:

Description

The Spirit-3 portable concentrator from Yuwell is a compact, safe device, designed for use in active, mobile environments. It provides additional oxygen in pulse form, with 4 different settings to adapt to each patient’s needs, with a maximum flow of 750 millilitres per minute.

The device weighs 1.8 kg without the battery and 2.4 kg with battery, making it easy to transport; it can be carried about easily on a shoulder strap. It is also quiet, allowing it to be used in any surroundings without bothering anyone

The Spirit-3 concentrator is a safe, efficient device, as it has a system of alarms that are tripped in the event of overheating, pressure failure, low oxygen concentration, lack of flow or low battery. This means the patient does not need to worry about whether it’s all working properly.

The battery has maximum charging time of 5 hours from zero to full charge. Battery life may vary depending on the setting used and the user’s respiratory frequency, but it can last up to 2 hours and 30 minutes.

Its operation is simple: just press the start button to begin using it. The Spirit-3 from Yuwell device can also show the battery level and use time on its screen.

Patients who can benefit from devices of this kind are those who suffer from respiratory insufficiency aggravated by activity. It allows them to go out and engage in physical activity.

OXIGEN salud dispone de un taller propio para garantizar el mantenimiento de todos los equipos de electromedicina y ofrece repuestos y accesorios para un funcionamiento correcto y un uso óptimo de los dispositivos.

More information (technical data)

  • Brand: Yuwell.
  • Model: Spirit-3 Portable Oxygen Concentrator.
  • Oxygen concentration (measured after a 30-minute warm-up): 90% +6%/-3%.
  • Output pressure: 150 kPa.
  • Noise level: ≤55 dB.
  • Minimum operating time: 30 minutes.
  • Operating temperature: 5°C~40°C.
  • Altitude: 0 to 5,000 m.
  • Oxygen delivery settings: Setting 1 to Setting 4.
  • Battery charge time: maximum 5 h from zero to fully charged, depending on the power supply and use.
  • Net weight: 1.8 kg (without battery), 2.4 kg (with battery).
  • Dimensions (H x W x D): 22 × 22 × 8 cm.
